DroneGym — Founders Inc

Overview

DroneGym started as a fix for a teammate's gripe from the Anduril AI Grand Prix, where their drone simulations kept stalling because they rendered full camera images pixel by pixel. That felt like solving a much bigger problem than the task needed, so DroneGym fakes what the camera sees with simple geometry instead of rendering anything at all. Describe a drone's hardware and it trains a flight AI to chase a target in about five minutes on a laptop, no GPU required, then you can watch it fly. Built overnight.

How It Works

• Hand-written NumPy quadrotor sim runs at 250 Hz under a 50 Hz policy (action repeat 5)
• "Fake CV" is pure pinhole geometry returning [bbox_x, bbox_y, bbox_size, visible] — zero pixels rendered, and a drop-in swap point for a real detector later
• Stable-Baselines3 PPO, MlpPolicy [64,64], 16 vectorized envs, 4-frame stack → 48 observation dims
• Curriculum promotes difficulty 0→3 on a rolling success rate
• Two scenarios: static target, and intercept — a constant-velocity crossing target, framed as counter-UAS

Tech Stack

• Physics: NumPy, 250 Hz rigid-body integration
• Training: Gymnasium env, Stable-Baselines3 PPO

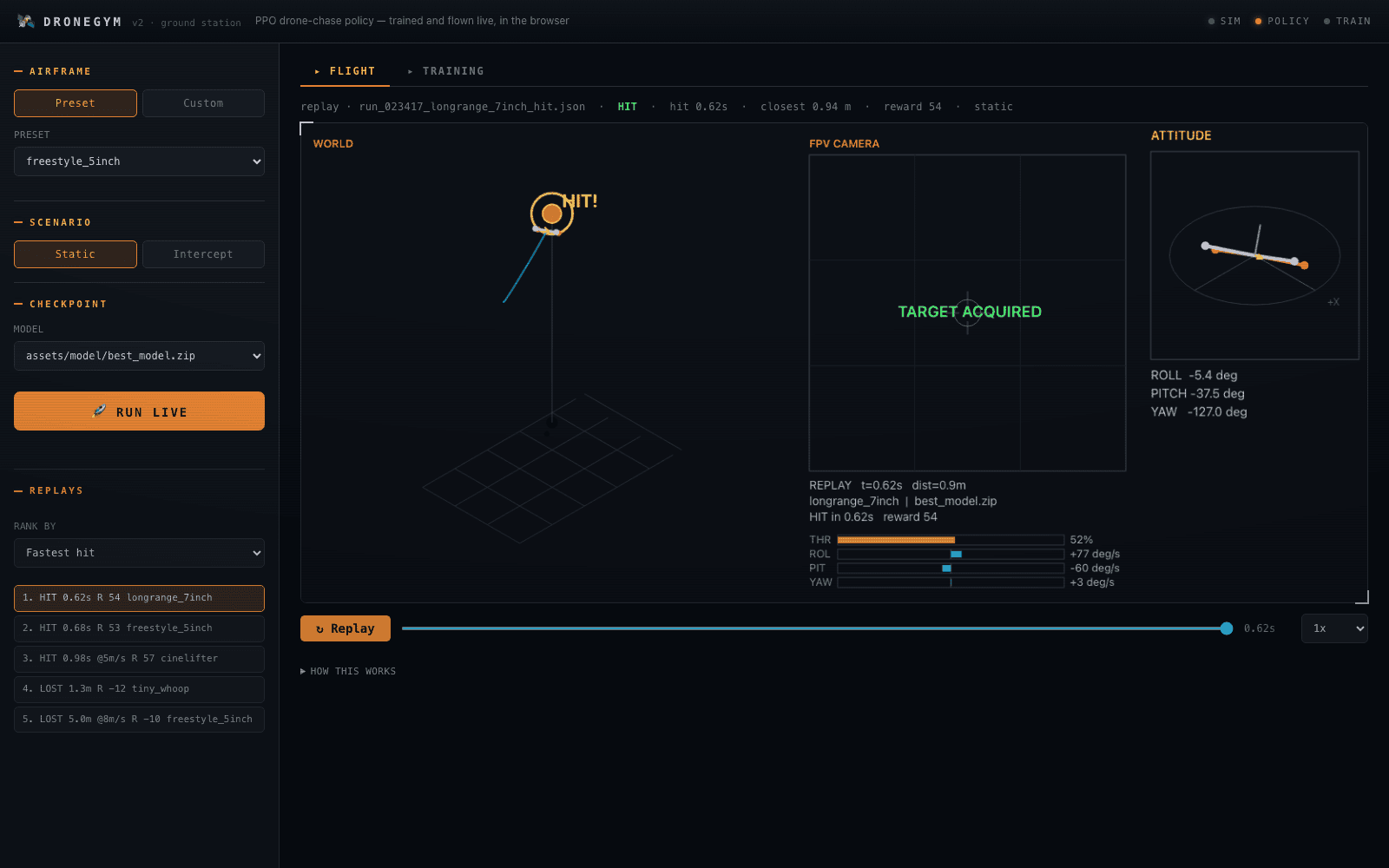

• Serving: FastAPI ground station backend, canvas frontend

My Contributions

Six-person team, 9 of 30 commits mine, with exclusive ownership of physics.py and config.py.

• Wrote the entire 250 Hz rigid-body integrator: quaternion math, Newton-Euler with gyroscopic coupling J⁻¹(τ − ω×Jω), first-order motor lag, linear drag, semi-implicit Euler, per-step quaternion renormalization
• Built DroneConfig and the hardware→physics derivation — KV × voltage → RPM → thrust via ct·ρ·(rpm/60)²·D⁴, frame size → arm length → inertia tensor — the piece that lets one policy architecture fly five wildly different airframes
• Wrote randomize_config() for sim-to-real domain randomization, randomized spawn states, and the derive_params/make_state adapter
• Added the --scenario/--target-speed training flags
• Wrote a physics-research literature review comparing six open-source drone simulators against ~20 papers to justify each design choice

Challenges

• Hover-centered action space: a fresh Gaussian policy outputs ≈0 mean, which under a naive thrust map commands ~5× hover on step one. Fixed by analytically inverting the physics mapping so a[0] == 0 is exact hover.
• Non-Markov observation: get_bbox returns zeros both when the target is behind the camera and when it's off-frame, so a single frame can't tell the policy which way to yaw to reacquire — hence the mandatory 4-frame stack.

Project Media

Demo video — a trained policy flying the intercept scenario.

Links

Tools & Methods

Built at Founders Inc Hack Night.
